• 1 LCD Monitor In The Front
• 2 12V DC Power Outlets
• 4 Speakers
• 4-Way Driver Seat -inc: Manual Recline and Fore/Aft Movement
• 4-Way Passenger Seat -inc: Manual Recline and Fore/Aft Movement

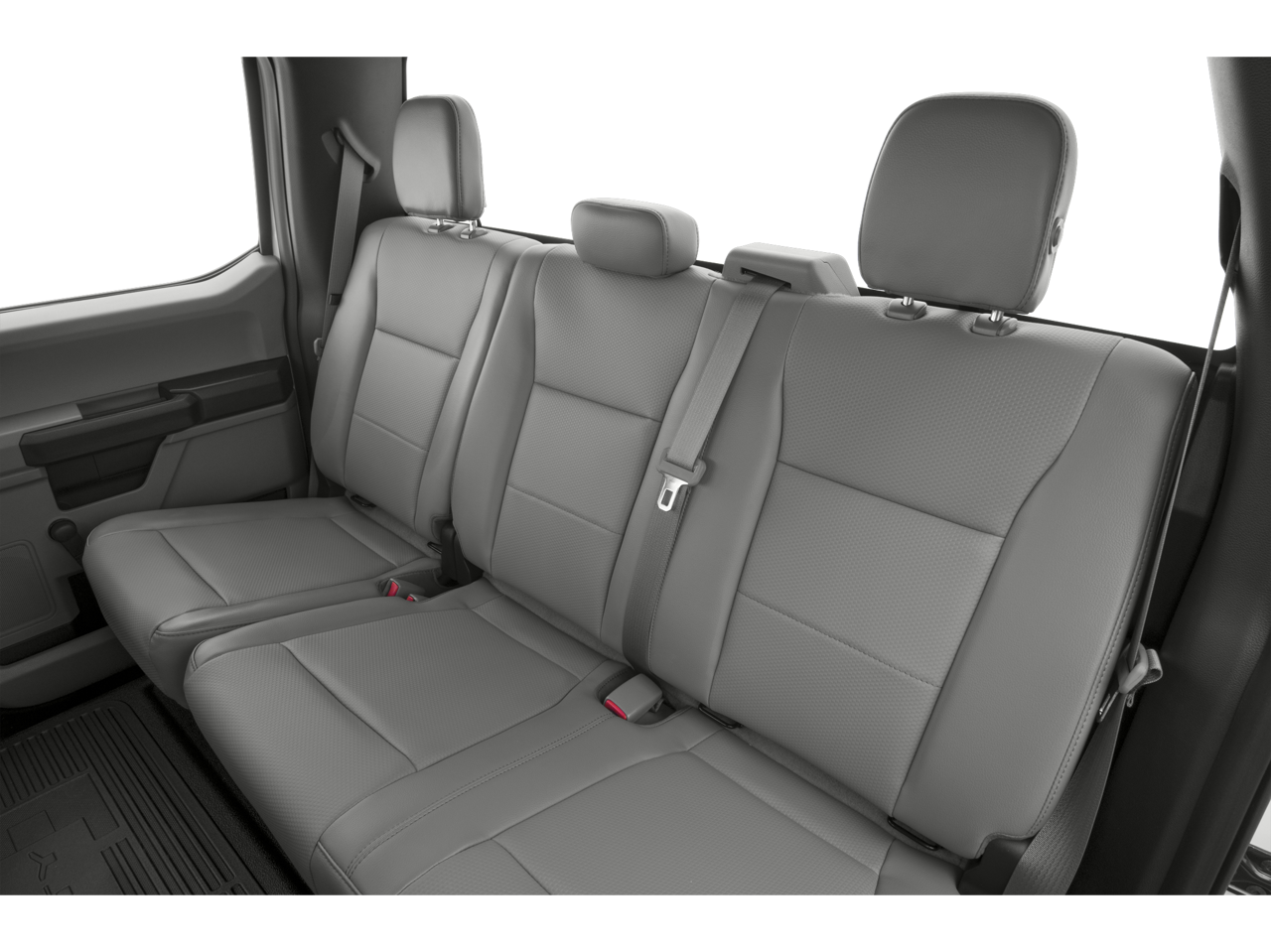

• 60-40 Folding Split-Bench Front Facing Fold-Up Cushion Rear Seat
• Air Filtration
• Analog Appearance
• Day-Night Rearview Mirror
• Driver Information Center
• Fade-To-Off Interior Lighting
• Fixed Antenna
• Front And Rear Map Lights

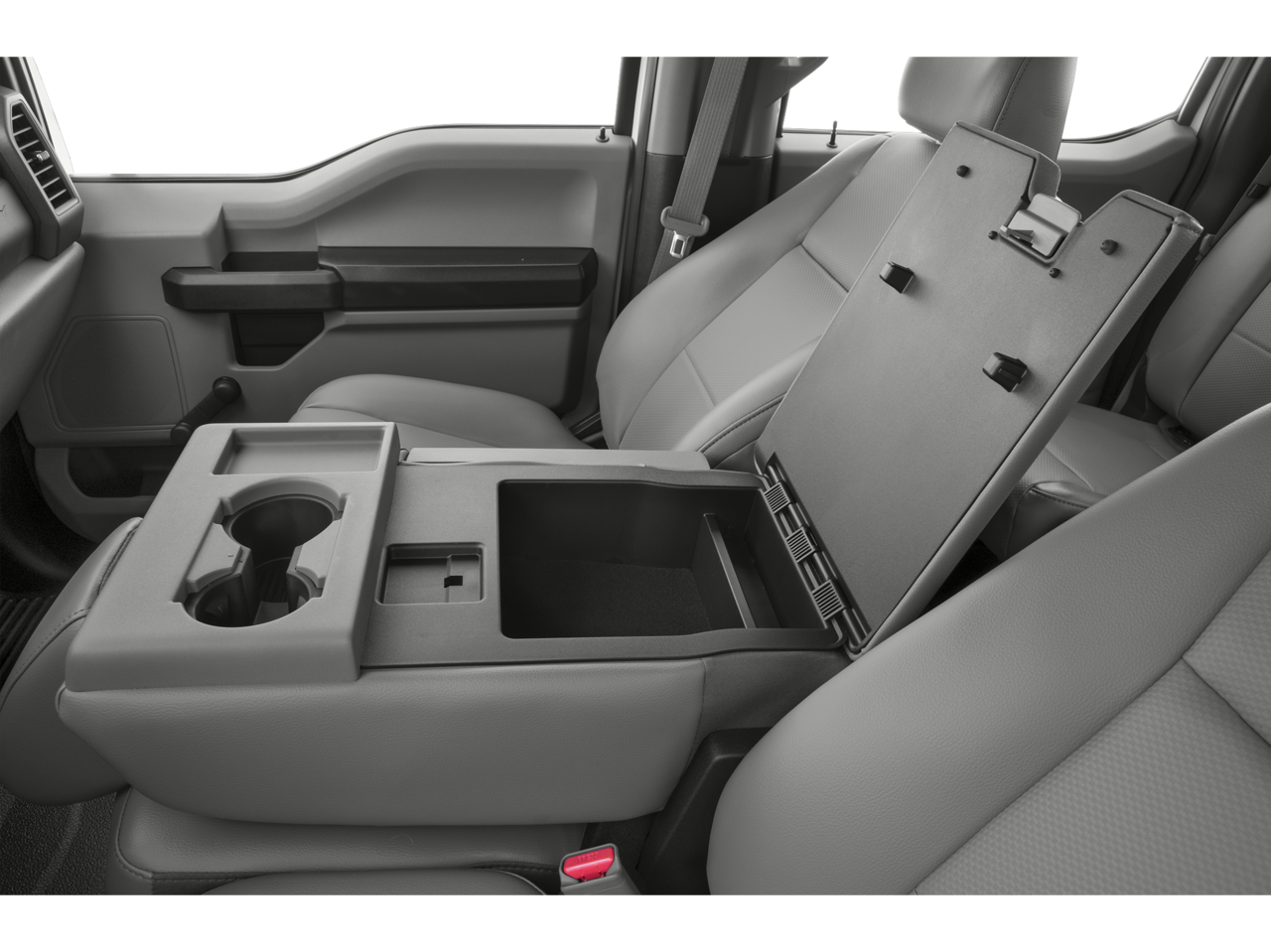

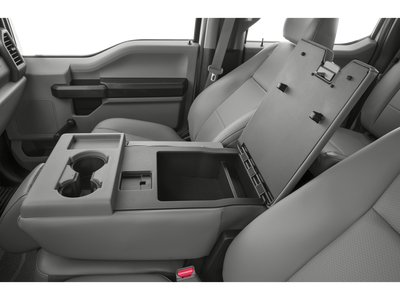

• Front Center Armrest w/Storage
• Front Cupholder
• Full Cloth Headliner
• Full Overhead Console w/Storage and 2 12V DC Power Outlets
• Full Vinyl/Rubber Floor Covering
• HD Vinyl 40/20/40 Split Bench Seat -inc: center armrest, cupholder, storage and driver's side manual lumbar
• HVAC -inc: Underseat Ducts
• Instrument Panel Covered Bin and Dashboard Storage
• Interior Trim -inc: Chrome Interior Accents
• Locking Glove Box
• Manual 1st Row Windows
• Manual Adjustable Front Head Restraints and Manual Adjustable Rear Head Restraints
• Manual Air Conditioning
• Manual Rear Windows
• Manual Tilt/Telescoping Steering Column
• Outside Temp Gauge
• Passenger Visor Vanity Mirror
• Radio w/Clock

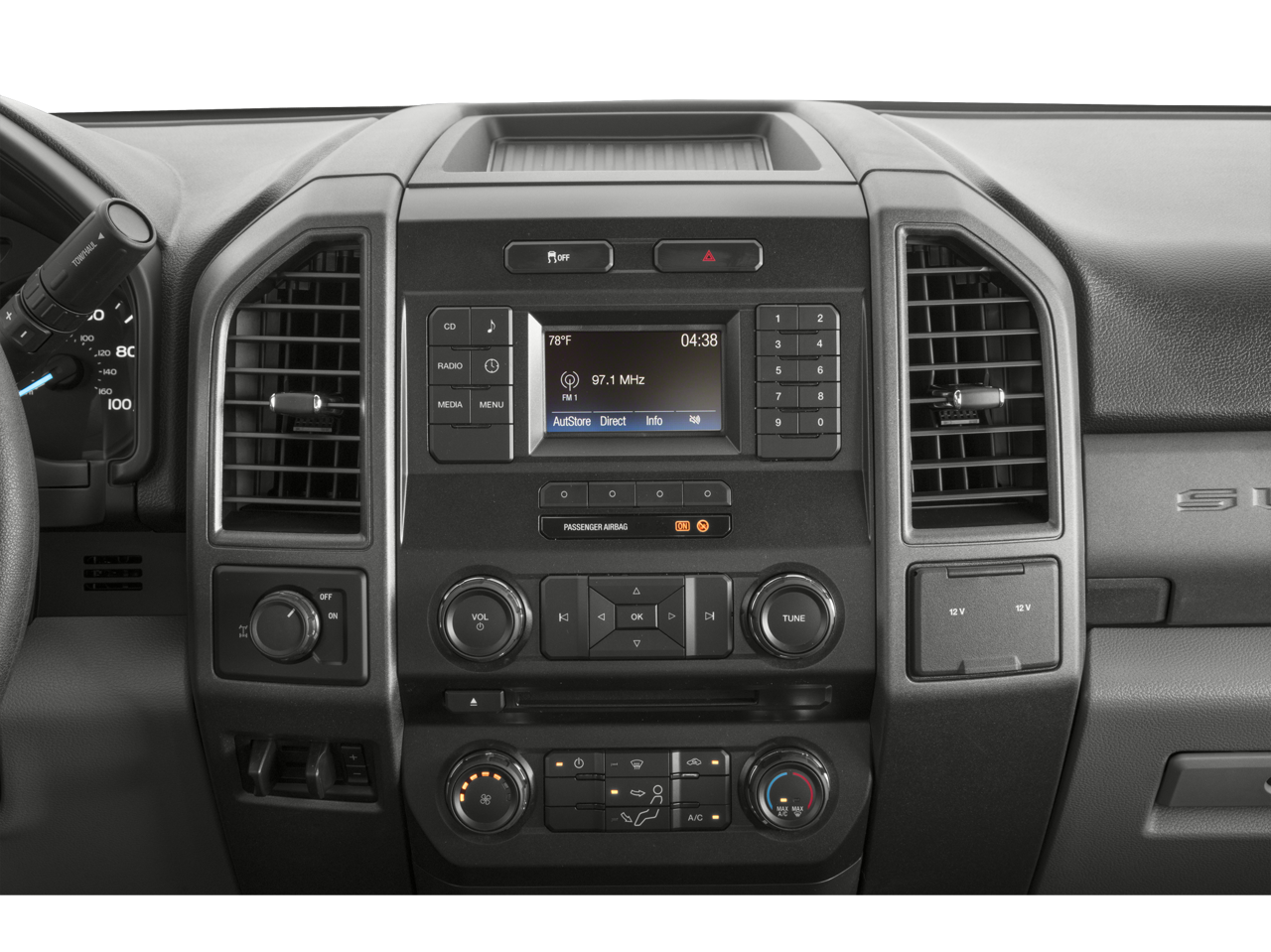

• Radio: AM/FM Stereo -inc: digital clock and 4 speakers
• Rear Cupholder
• Securilock Anti-Theft Ignition (pats) Immobilizer
• Trip Computer
• Urethane Gear Shifter Material

• 157 Amp Alternator
• 3.73 Axle Ratio
• 4-Wheel Disc Brakes w/4-Wheel ABS, Front And Rear Vented Discs, Brake Assist and Hill Hold Control
• 48 Gal. Fuel Tank
• 50-State Emissions System
• 72-Amp/Hr 650CCA Maintenance-Free Battery w/Run Down Protection
• Auto Locking Hubs
• Class V Towing Equipment -inc: Hitch and Trailer Sway Control
• Electronic Transfer Case
• Firm Suspension
• Front Anti-Roll Bar
• Front Suspension w/Coil Springs
• GVWR: 10,000 lb Payload Package
• HD Gas-Pressurized Shock Absorbers
• Hydraulic Power-Assist Steering
• Part-Time Four-Wheel Drive
• Single Stainless Steel Exhaust
• Solid Axle Rear Suspension w/Leaf Springs
• Trailer Wiring Harness

• ABS And Driveline Traction Control
• AdvanceTrac w/Roll Stability Control Electronic Stability Control (ESC) And Roll Stability Control (RSC)
• Back-Up Camera
• Dual Stage Driver And Passenger Front Airbags
• Dual Stage Driver And Passenger Seat-Mounted Side Airbags
• Mykey System -inc: Top Speed Limiter, Audio Volume Limiter, Early Low Fuel Warning, Programmable Sound Chimes and Beltminder w/Audio Mute
• Outboard Front Lap And Shoulder Safety Belts -inc: Rear Center 3 Point and Height Adjusters
• Rear Child Safety Locks
• Safety Canopy System Curtain 1st And 2nd Row Airbags
• Side Impact Beams
• Tire Specific Low Tire Pressure Warning

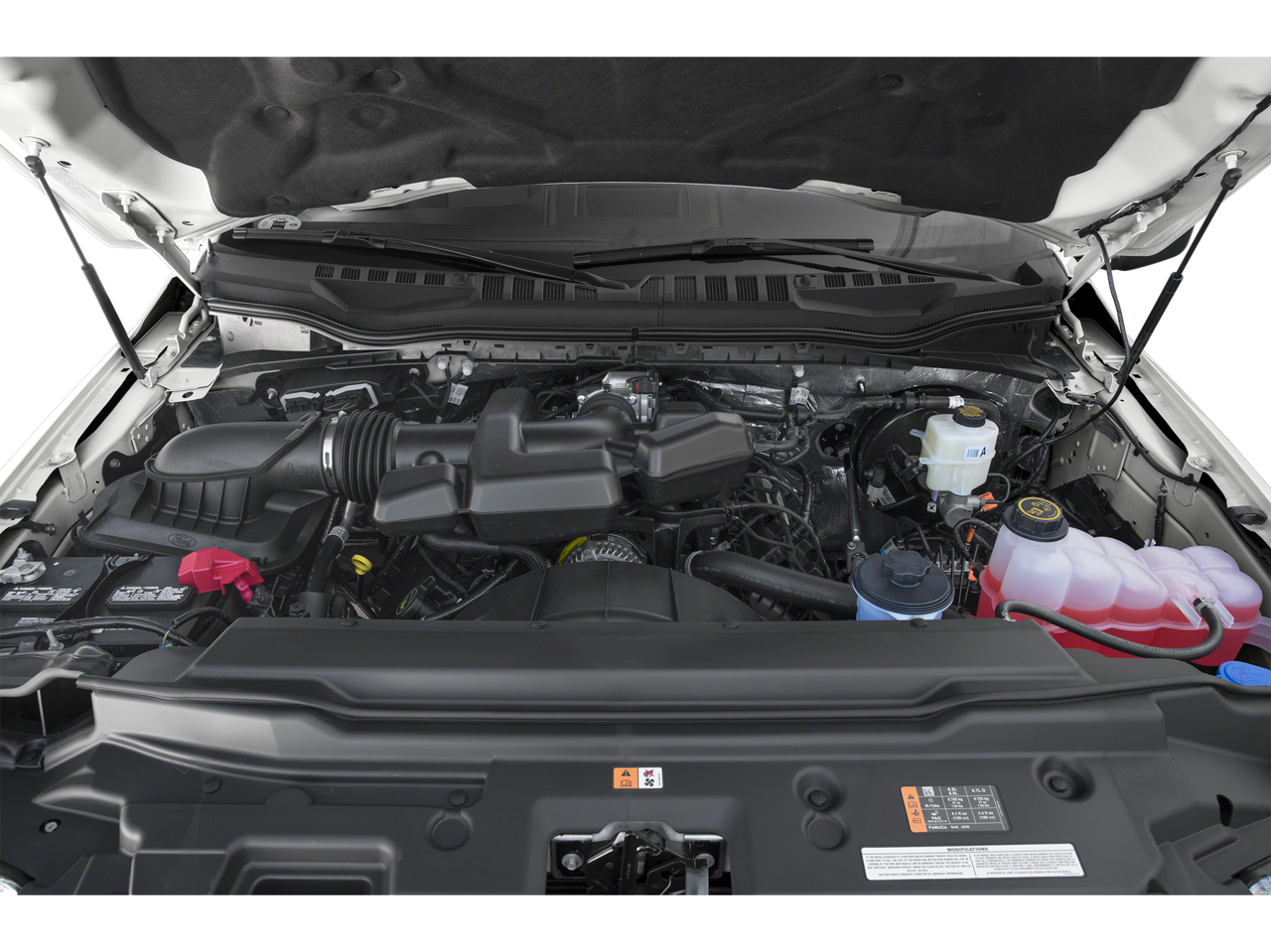

ENGINE: 6.2L 2-VALVE SOHC EFI NA V8 FLEX-FUEL

• Flex-Fuel badge on fleet orders only (STD)

• ENGINE: 6.2L 2-VALVE SOHC EFI NA V8 FLEX-FUEL -inc: Flex-Fuel badge on fleet orders only (STD)
• Four Wheel Drive
• Tow Hitch
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Brake Assist
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Tow Hooks
• Intermittent Wipers
• Variable Speed Intermittent Wipers
• Daytime Running Lights
• Automatic Headlights
• AM/FM Stereo
• Pass-Through Rear Seat
• Rear Bench Seat
• Adjustable Steering Wheel
• Trip Computer
• A/C
• Vinyl Seats
• Split Bench Seat
• Driver Adjustable Lumbar
• Passenger Vanity Mirror
• Trip Computer
• Immobilizer
• Traction Control
• Stability Control
• Traction Control
• Front Side Air Bag
• Tire Pressure Monitor
• Driver Restriction Features
• Front Head Air Bag
• Rear Head Air Bag
• Driver Air Bag
• Passenger Air Bag
• Child Safety Locks
• Back-Up Camera

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 650
• Cold Cranking Amps @ 0° F (2nd): 650
• Maximum Alternator Capacity (amps): 157
• Weight Information
• Base Curb Weight (lbs): 6446
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 6340
• Curb Weight - Front (lbs): 3800
• Curb Weight - Rear (lbs): 2646
• Gross Vehicle Weight Rating Cap (lbs): 10000
• Gross Combined Wt Rating (lbs): 19500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 12500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1250
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 12500
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3125
• Maximum Trailering Capacity (lbs): 12500
• Suspension
• Suspension Type - Front: Other
• Suspension Type - Rear: Leaf
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 6340
• Axle Type - Front: Non-Independent
• Axle Type - Rear: Rigid Axle
• Axle Capacity - Front (lbs): 6000
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Brake ABS System (Second Line): 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14.3
• Rear Brake Rotor Diam x Thickness (in): 14.3
• Tires
• Front Tire Order Code: TD8
• Rear Tire Order Code: TD8
• Front Tire Size: LT245/75SR17
• Rear Tire Size: LT245/75SR17
• Spare Tire Size: Full-Size
• Front Tire Capacity (lbs): 6390
• Rear Tire Capacity (lbs): 6390
• Revolutions/Mile @ 45 mph - Front: 645
• Revolutions/Mile @ 45 mph - Rear: 645
• Wheels
• Front Wheel Size (in): 17 X 7.5
• Rear Wheel Size (in): 17 X 7.5
• Spare Wheel Size (in): Full-Size
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Re-Circulating Ball
• Turning Diameter - Curb to Curb (ft): 53
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 34
• Exterior Dimensions
• Wheelbase (in): 160
• Length, Overall (in): 250
• Width, Max w/o mirrors (in): 80
• Height, Overall (in): 81.5
• Overhang, Front (in): 38.2
• Cab to Axle (in): 39.9
• Ground to Top of Load Floor (in): 38.1
• Ground Clearance, Front (in): 8.2
• Ground Clearance, Rear (in): 8.2
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 81.9
• Cargo Box Width @ Top, Rear (in): 66.9
• Cargo Box Width @ Floor (in): 66.9
• Cargo Box Width @ Wheelhousings (in): 50.5
• Cargo Box (Area) Height (in): 21.1
• Tailgate Width (in): 60.5
• Cargo Volume (ft³): 65.4
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 40.8
• Front Leg Room (in): 43.9
• Front Shoulder Room (in): 66.7
• Front Hip Room (in): 62.5
• Second Head Room (in): 40.4
• Second Leg Room (in): 43.6
• Second Shoulder Room (in): 65.9
• Second Hip Room (in): 64.7
• Summary

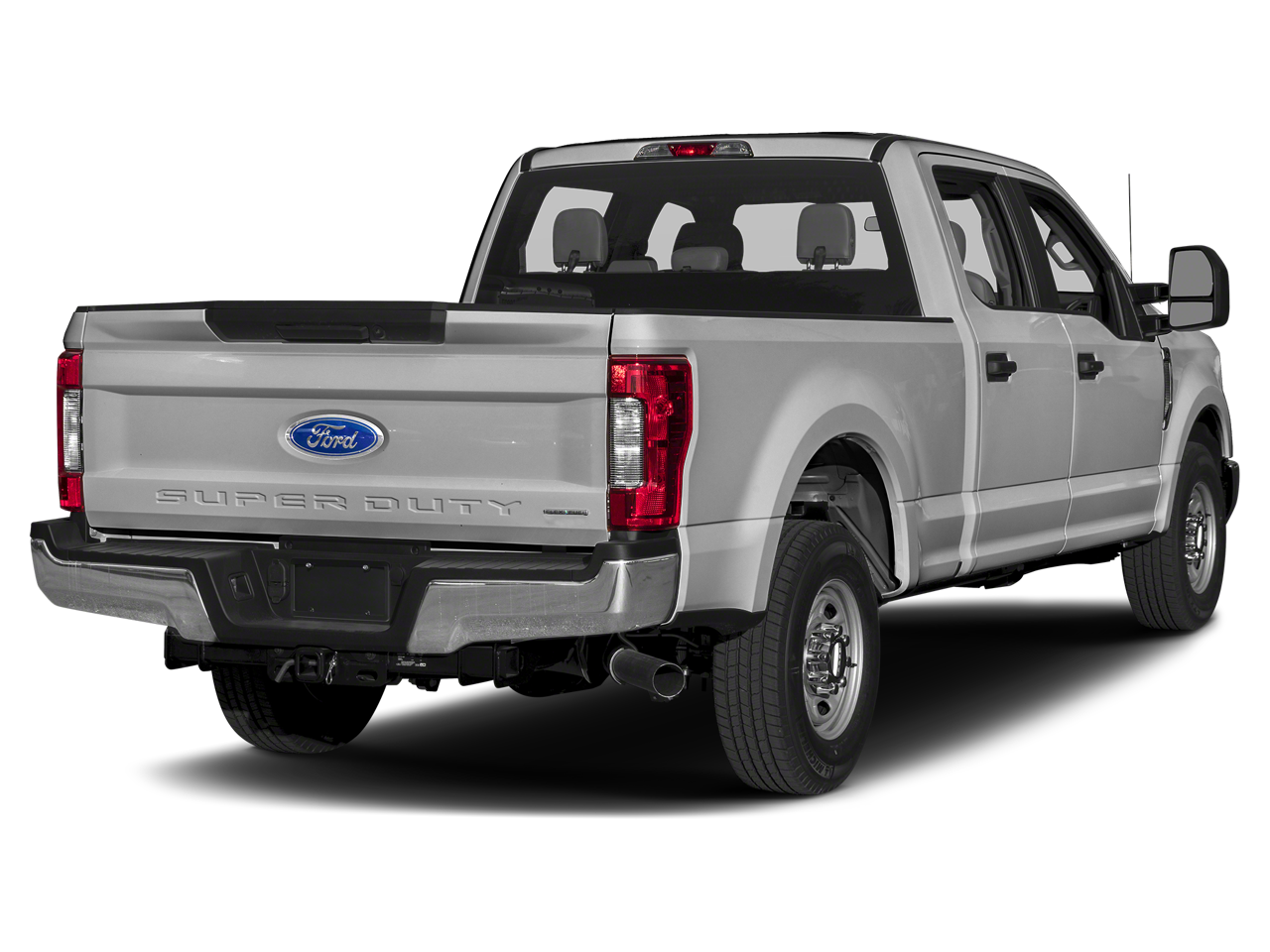

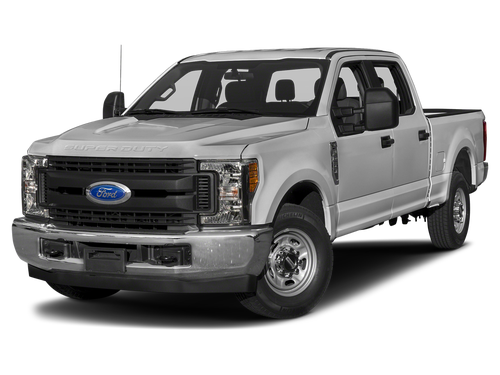

• Vehicle Name: Ford Super Duty F-250 SRW
• Body Style: SD Crew Cab
• Body Code: T
