• 2 LCD Monitors In The Front
• 60-40 Folding Split-Bench Front Facing Fold-Up Cushion Rear Seat
• Air Filtration
• Compass
• Cruise Control w/Steering Wheel Controls
• Delayed Accessory Power
• Digital/Analog Appearance
• Driver Information Center
• Fade-To-Off Interior Lighting
• Fixed Antenna
• FordPass Connect 4G Mobile Hotspot Internet Access
• Front And Rear Map Lights
• Front Cupholder
• Full Cloth Headliner
• Locking Glove Box
• Manual Adjustable Front Head Restraints and Manual Adjustable Rear Head Restraints
• Outside Temp Gauge
• Power 1st Row Windows w/Driver And Passenger 1-Touch Up/Down
• Power Rear Windows
• Rear Cupholder
• Remote Keyless Entry w/Integrated Key Transmitter, Illuminated Entry and Panic Button
• Securilock Anti-Theft Ignition (pats) Immobilizer
• Trip Computer
• Urethane Gear Shifter Material

• 3.73 Axle Ratio
• 4-Wheel Disc Brakes w/4-Wheel ABS, Front And Rear Vented Discs, Brake Assist, Hill Hold Control and Electric Parking Brake
• 40 Gal. Fuel Tank
• 50-State Emissions System
• Auto Locking Hubs
• Dual Rear Wheels
• Electronic Transfer Case
• Firm Suspension
• Front And Rear Anti-Roll Bars
• Front Suspension w/Coil Springs
• GVWR: 14,000 lb Payload Package
• HD Gas-Pressurized Shock Absorbers
• Hydraulic Power-Assist Steering
• Part-Time Four-Wheel Drive
• Single Stainless Steel Exhaust
• Solid Axle Rear Suspension w/Leaf Springs
• Towing Equipment -inc: Brake Controller and Trailer Sway Control
• Trailer Wiring Harness
• Upfitter Switches

• Collision Mitigation-Front
• Driveline Traction Control
• Dual Stage Driver And Passenger Front Airbags
• Dual Stage Driver And Passenger Seat-Mounted Side Airbags
• Lane Departure Warning
• Outboard Front Lap And Shoulder Safety Belts -inc: Height Adjusters
• Pre-Collision Assist with Automatic Emergency Braking (AEB)
• Rear Child Safety Locks
• Safety Canopy System Curtain 1st And 2nd Row Airbags
• Side Impact Beams

ENGINE: 6.7L 4V OHV POWER STROKE V8 TURBO DIESEL B20

• Operator Commanded Regeneration (OCR)
• Diesel Exhaust Fluid (DEF) tank
• intelligent oil-life monitor and manual push-button engine-exhaust braking
• 250 Amp Alternator
• Dual 68 AH/65 AGM Battery

• ENGINE: 6.7L 4V OHV POWER STROKE V8 TURBO DIESEL B20 -inc: Operator Commanded Regeneration (OCR) Diesel Exhaust Fluid (DEF) tank intelligent oil-life monitor and manual push-button engine-exhaust braking
• Four Wheel Drive
• Power Steering
• Dual Rear Wheels
• ABS
• 4-Wheel Disc Brakes
• Brake Assist
• Tires - Front All-Season
• Tires - Rear All-Season
• Tow Hooks
• Heated Mirrors
• Power Mirror(s)
• Integrated Turn Signal Mirrors
• Intermittent Wipers
• Variable Speed Intermittent Wipers
• Daytime Running Lights
• Automatic Headlights
• AM/FM Stereo
• Pass-Through Rear Seat
• Rear Bench Seat
• Adjustable Steering Wheel
• WiFi Hotspot
• Keyless Entry
• Cruise Control
• A/C
• Driver Adjustable Lumbar
• Seat Memory
• Passenger Vanity Mirror
• Immobilizer
• Traction Control
• Front Side Air Bag
• Lane Departure Warning
• Front Collision Mitigation
• Front Head Air Bag
• Rear Head Air Bag
• Driver Air Bag
• Passenger Air Bag
• Child Safety Locks

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): 250
• Weight Information
• Base Curb Weight (lbs): 7478
• Base Curb Weight (lbs): 6792
• Gross Axle Wt Rating - Front (lbs): 5200
• Gross Axle Wt Rating - Rear (lbs): 10300
• Curb Weight - Front (lbs): 3960
• Curb Weight - Rear (lbs): 2832
• Gross Vehicle Weight Rating Cap (lbs): 14000
• Gross Combined Wt Rating (lbs): 23500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 15500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1550
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 15300
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3825
• Maximum Trailering Capacity (lbs): 15500
• Suspension
• Suspension Type - Front: Other
• Suspension Type - Rear: Leaf
• Spring Capacity - Front (lbs): 5200
• Spring Capacity - Rear (lbs): 10300
• Axle Type - Front: Non-Independent
• Axle Type - Rear: Rigid Axle
• Axle Capacity - Front (lbs): 6000
• Axle Capacity - Rear (lbs): 10300
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Brake ABS System (Second Line): 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14.3
• Rear Brake Rotor Diam x Thickness (in): 14.3
• Tires
• Front Tire Order Code: TD8
• Rear Tire Order Code: TD8
• Front Tire Size: LT245/75SR17
• Rear Tire Size: LT245/75SR17
• Front Tire Capacity (lbs): 5820
• Rear Tire Capacity (lbs): 11640
• Revolutions/Mile @ 45 mph - Front: 649
• Revolutions/Mile @ 45 mph - Rear: 649
• Wheels
• Front Wheel Size (in): 17 X 6.5
• Rear Wheel Size (in): 17 X 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Re-Circulating Ball
• Turning Diameter - Curb to Curb (ft): 58.8
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 40
• Exterior Dimensions
• Wheelbase (in): 179
• Length, Overall (in): 265.2
• Width, Max w/o mirrors (in): 80
• Height, Overall (in): 81.2
• Overhang, Front (in): 38.3
• Overhang, Rear w/o bumper (in): 47.2
• Cab to Axle (in): 60
• Cab to End of Frame (in): 107.2
• Frame Width, Rear (in): 34.1
• Ground Clearance, Front (in): 7.8
• Ground Clearance, Rear (in): 7.8
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 40.8
• Front Leg Room (in): 43.9
• Front Shoulder Room (in): 66.7
• Front Hip Room (in): 62.5
• Second Head Room (in): 40.4
• Second Leg Room (in): 43.6
• Second Shoulder Room (in): 65.9
• Second Hip Room (in): 64.7
• Summary

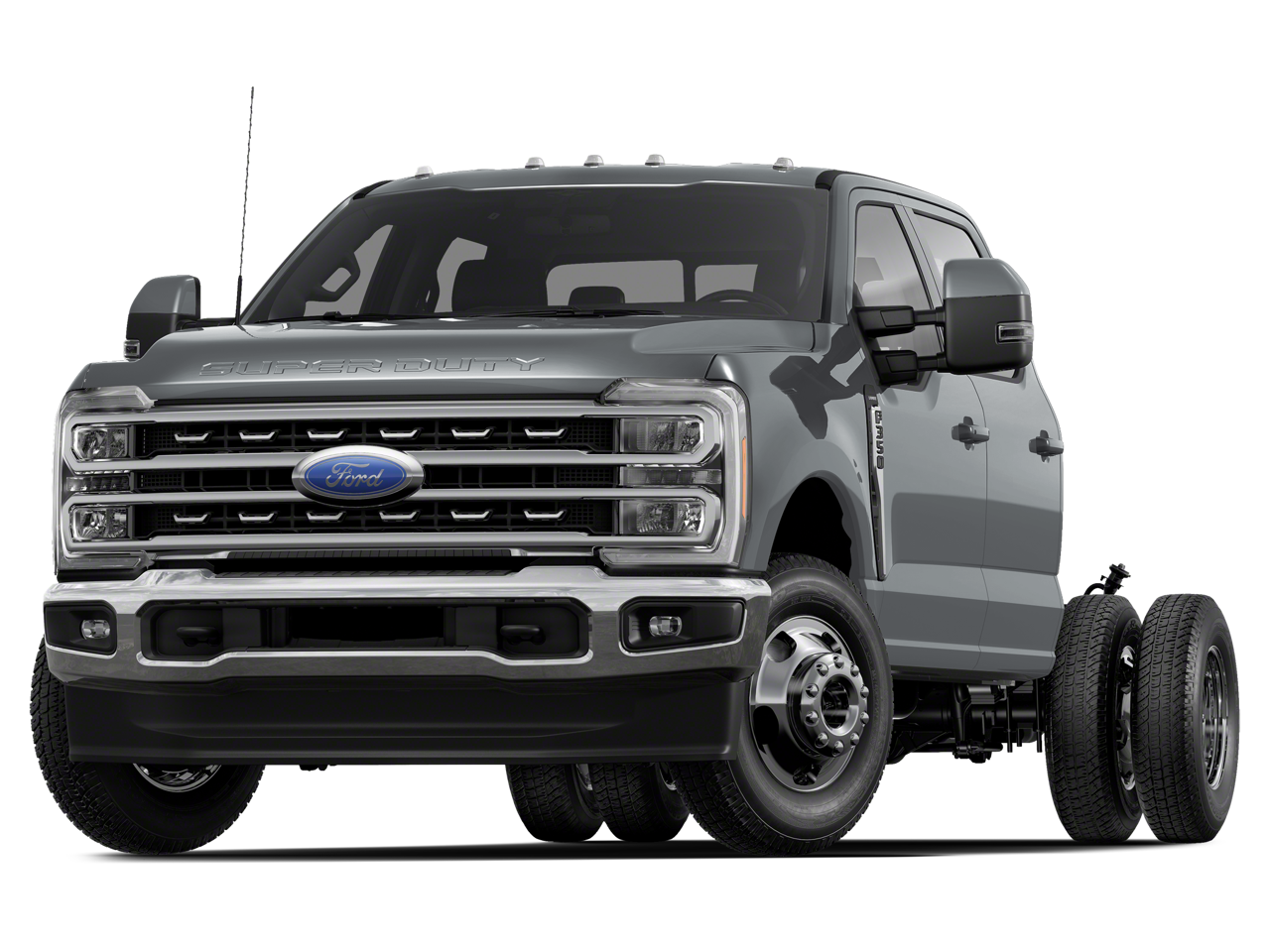

• Vehicle Name: Ford Super Duty F-350 DRW
• Body Style: SD Crew Cab
• Body Code: H
